Place of Origin : China

Backlight type : 8 LEDs in series

Brand Name : ORIENTRONIC

Supply Voltage : 5V (default 5V; if 3.3V is required, please refer to the specifications for modification)

Payment Terms : L/C, T/T, D/A, D/P, Western Union, Paypal

Size : 4.3-inch IPS display

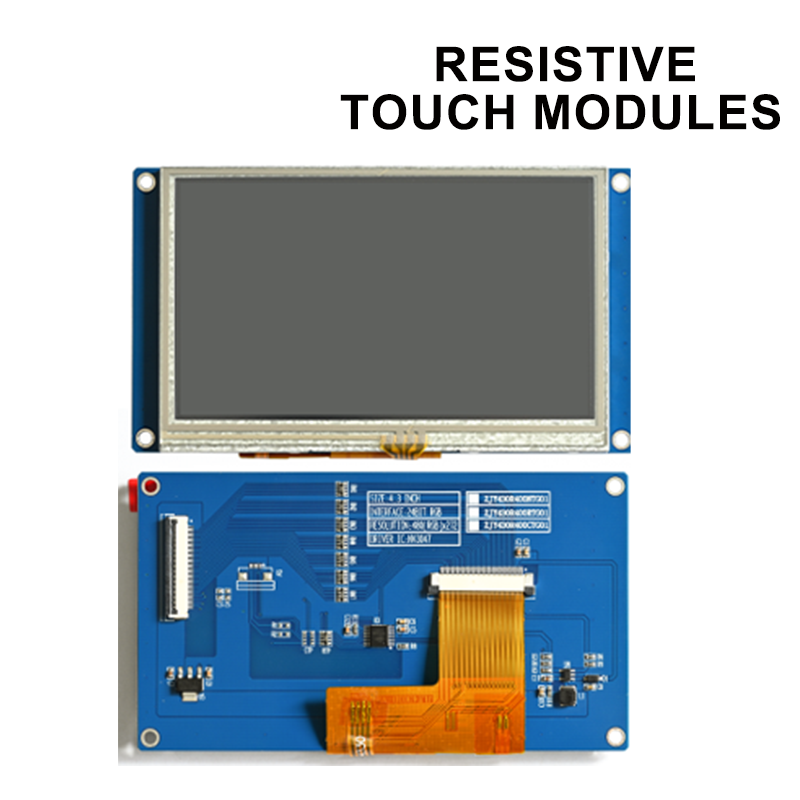

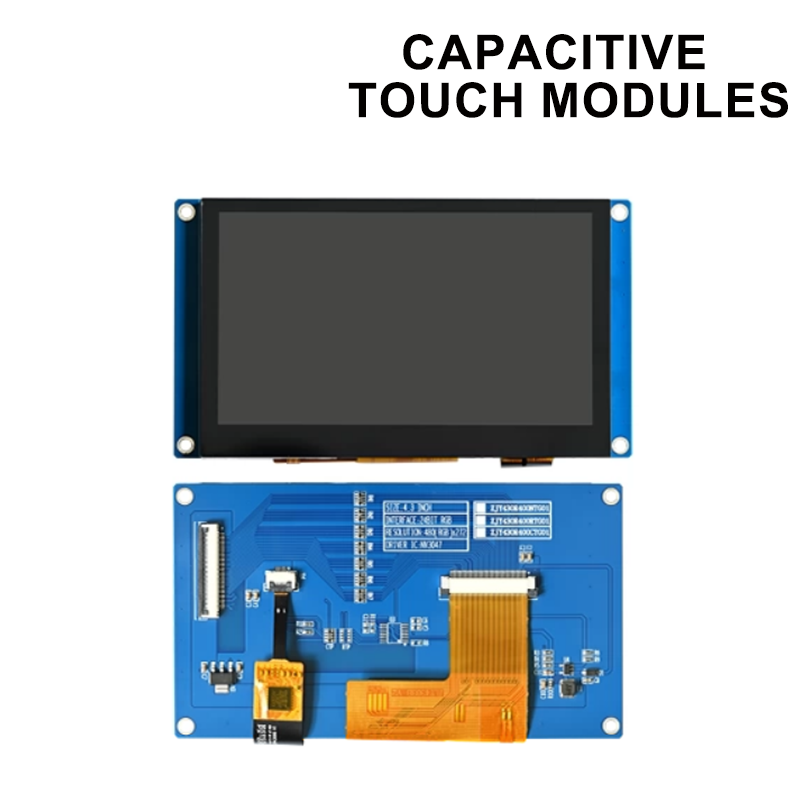

Touch type : Three options available: no touch, resistive touch, capacitive touch (5-point touch)

Delivery Time : 4~6 Working Days

Control chip : NV3047

Interface type : RGB888/666/565

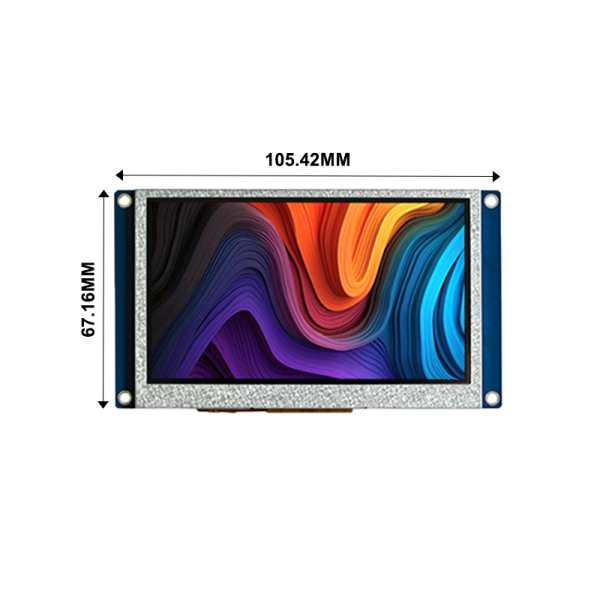

PCB module dimensions : Without touch (118.5 (W) × 67.25 (H) × 4.6 (T) mm (excluding connector thickness)), Resistive touch (118.5 (W) × 67.25 (H) × 5.8 (T) mm (excluding connector thickness)), capacitive touch (118.5 (W) × 67.25 (H) × 5.8 (T) mm (excluding connector thickness))

Storage Temperature : -30 to 80°C

Packaging Details : Prices are set based on design and quantity.

Resolution : 480 (RGB) x 272; display orientation is adjustable, supporting both landscape and portrait modes

Viewing Angle : Full viewing angle

Supply Ability : Design based on the product

Display area : 95.04 (W) x 53.86 (H)

Current : 30mA

MOQ : First purchase, no purchase quantity limit.

Price : Prices are set based on design and quantity.

Operating Temperature : -20 to 70°C

Material : TFT LCD
